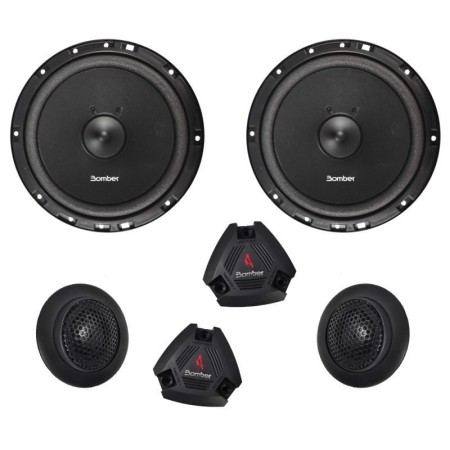

Kit 2 Vias 6 "Bomber TKL 120W / 60W RMS

Speakers Bomber 2-way Kit separated from 6 "TKL 6"

The TKL line provides sophistication to your project, with high quality products and sound efficiency. This kit consists of 2 6 "speakers, 2 tweeters and 2 crossovers.

Speakers have metallic structure, cellulose cone, copper polycover, 80 mm magnetic mounting diameter and 12 mm thick, generating an excellent performance in the media and acute with a frequency response of 52 Hz to 12 KHz, and with a power of 60 W RMS.

Tweeters have silk diaphragm, respond to 3 kHz at 20 kHz and differentiated structures for installation, allowing the best adjustment of the product angle.

The crossovers, in turn, are those responsible for the Union between the response of both, ensuring greater sound integrity. It has a second order filter and polypropylene film capacitors, which improves high frequency playback.

Bomber Speakers, technology you hear!

Package content:

2 6 "speakers

2 Silk Tweeters 1 "

2 crossover

2 Tweeter base frames

2 Superior Tweeter bezels

4 Fixing screws for Tweeter

2 Tweeter assembly clips

2 double-sided ribbons for tweeter

2 Base frame fixing rings

1 Guarantee Certificate

Technical specifications:

Nominal impedance: 4 Ω

RMS power: 60W

Response Frequency (-10dB) * ①, * ②: 52 Hz at 20 kHz

Sensitivity (1W / 1M) * ①, * ②: 89 dB (SPL)

Diameter of the coil: 25.38 mm

Winding height: 10.7 mm

BOIL BODY: Aluminum

Coil cable material: copper

Height of the gap: 4 mm

Xmax (maximum maximum displacement): 3.35 mm

Xlimit (before damage): 7.35 mm

Magnet diameter: 80 x 12 mm

Cone: cellulose

Centered: cotton

Housing: Steel

Thielle-Small parameters

FS (Resonance Frequency): 63 Hz

Vas (balanced speaker volume): 15.94 L

QTS (Quality Factor): 0.86

QES (electricity rating factor): 1.11

QMS (mechanical quality factor) 3.77

Ƞo (reference efficiency): 0.35%

SD (Effective Cono Area): 133 cm²

βL: 3.48 TM

Sensitivity: 87.6 dB (SPL)

Re (Electric Resistance): 3.47 Ω

Z min (minimum impedance): 3,56 Ω

MMS (Mobile Mass): 9.75 g

CMS (Mechanical Comformity): 0.65 mm / n

Le 1khz: 0.22 mh

Le 10khz: 0.06 mh

* ① Response curve with 600-liter sealed box according to IEC 60268-5

* ② Thielle-Small response parameters and curve, obtained from the softened speaker for 30 minutes applying ½ power with a music program.
